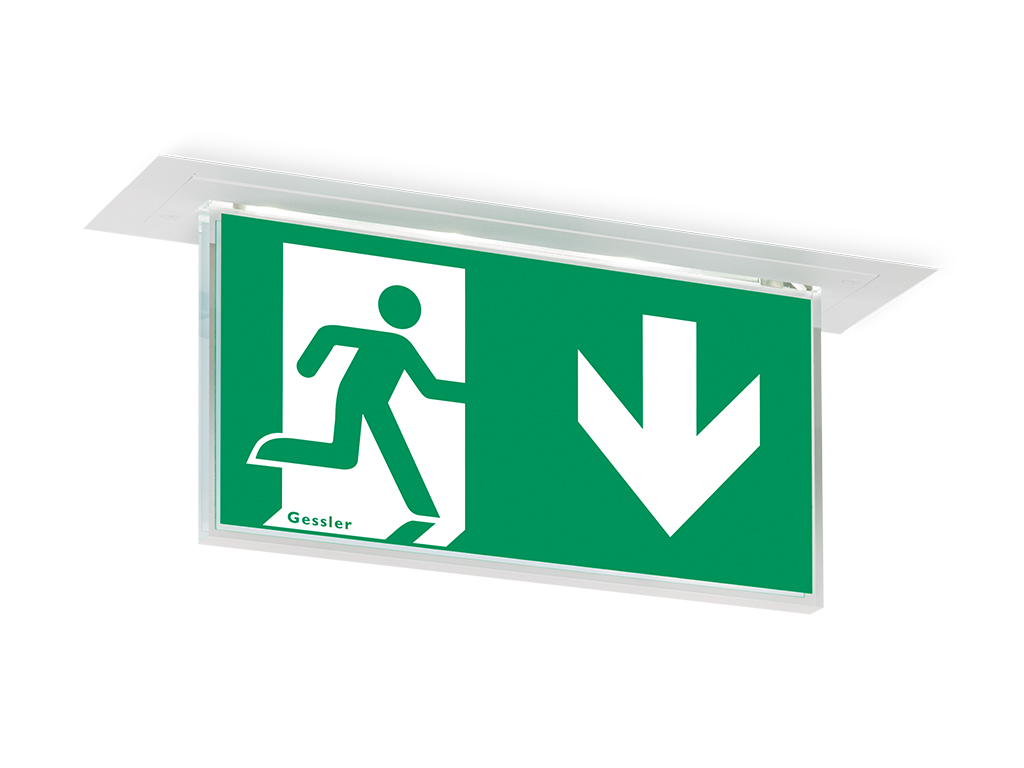

Display 3000/G6 Display 3000/F6
Two who set the agenda. While the Display 3000/G6 was designed for standard ceiling heights, with the Display 3000/F6 we have developed a solution for small installation depths. When installed, the two are identical visually.
Display 3000/G6 Display 3000/F6 | |
---|---|
System luminaire: | • |
Rechargeable battery luminaire: | • |
Viewing distance: | 24 m |
Enclosure material: | Sheet steel |
Enclosure colour/surface: | RAL 9016 white |
Light source : | LED |
Degree of protection: | IP 20 |
Class: | I |
Order Number: | DG6 / DF6 |
Resources:
Data sheet (1.01 MB) | |
Assembly instructions (0.64 MB) | |
Concrete ceiling box (0.56 MB) | |
Display 3000/G6 - CE-declaration of conformity (0.93 MB) | |
Display 3000/F6 - CE-declaration of conformity (0.93 MB) | |
Awarded by U.S. GBC (Display G-range) (0.27 MB) |
