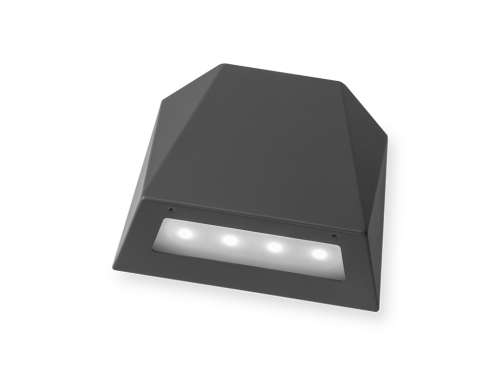

LED-Master PM4
Whether as PM4 for outdoors (IP65) or as LM4 for indoors (IP41), both versions are visually identical. To counteract direct glare, the LED Master LM4/PM4 has a satin finish glass cover, which has an output angle of 45°. Suitable for lighting indoor and outdoor open areas in accordance with EN 1838.
| LED-Master PM4 | |
|---|---|
| System luminaire: | • |
| Rechargeable battery luminaire: | • |
| Viewing distance: | |
| Enclosure material: | Stainless steel |
| Enclosure colour/surface: | RAL 9016 white / RAL 7024 graphite grey |
| Light source : | 4 x 1W Power-LED |
| Degree of protection: | IP 65 |
| Class: | I |
| Order Number: | PM4 |
Resources:
 | Data sheet (0.53 MB) |
| Drilling template (0.11 MB) |
| Drilling template Concrete adapter (0.11 MB) |
| CE-declaration of conformity (0.95 MB) |
 | Eulumdat Files (0.12 MB) |
