Lens luminaires - Modular structure

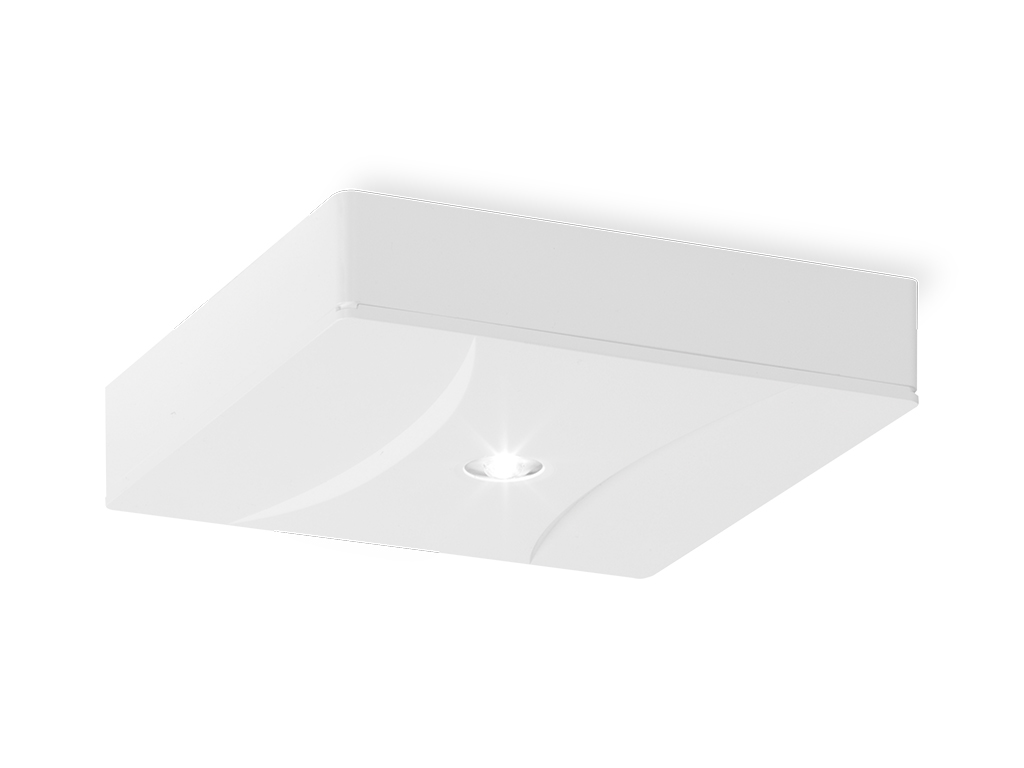

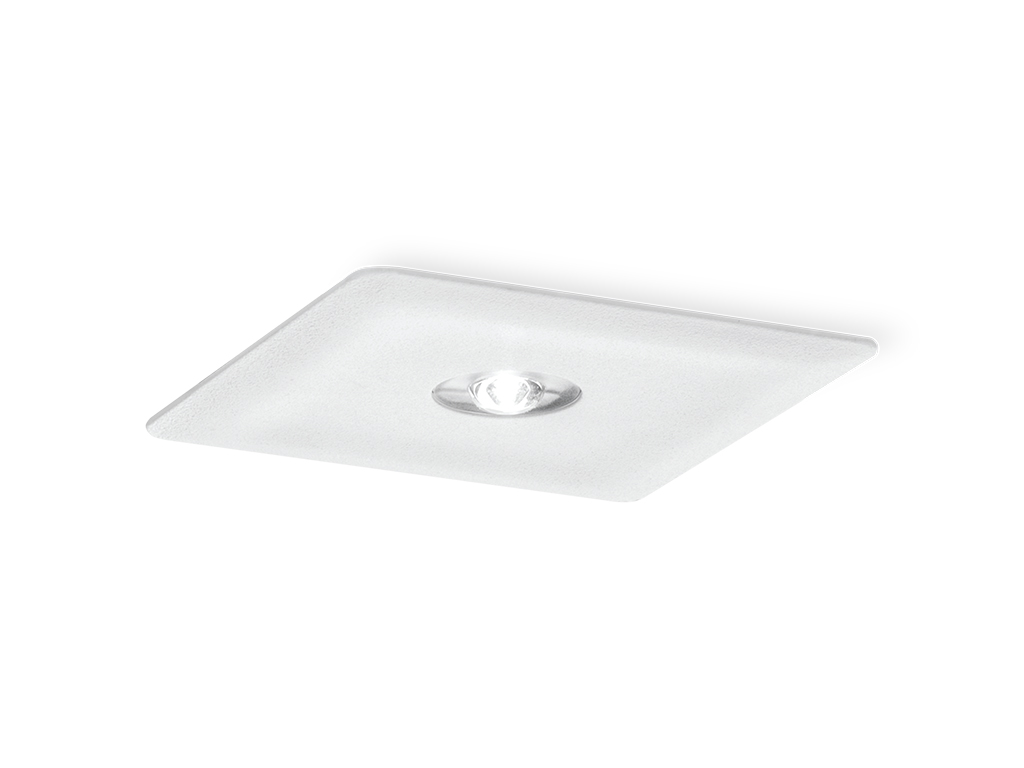

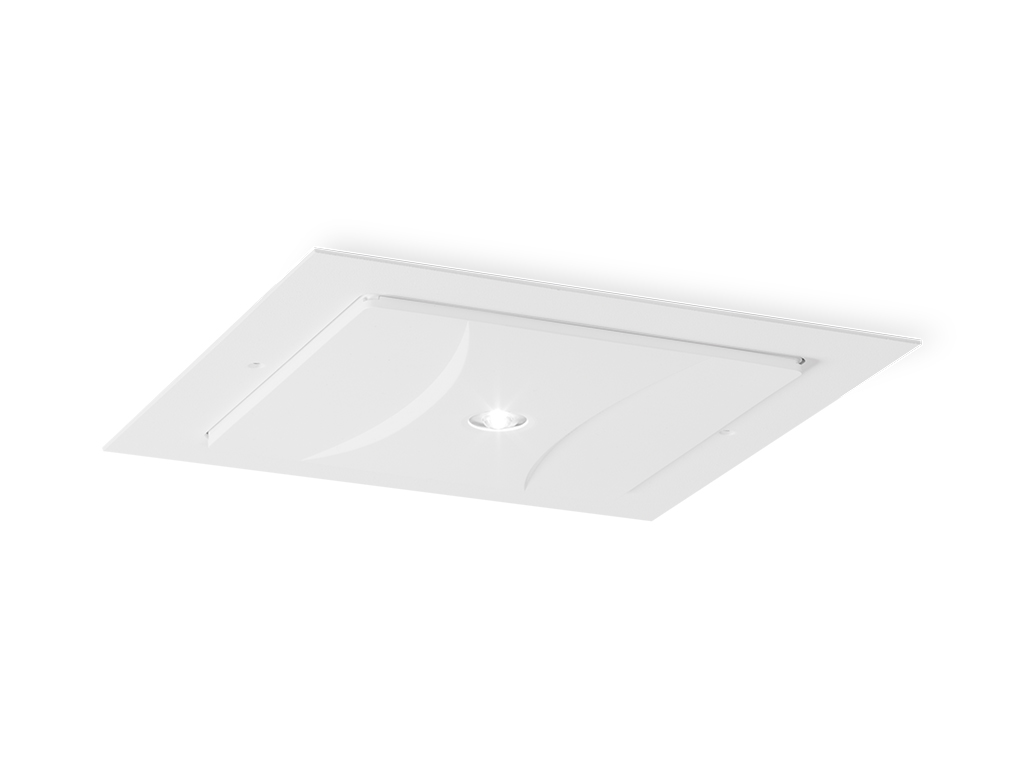

LED-Spot PG5 - LED-Spot LG5 - LED-Spot SG5

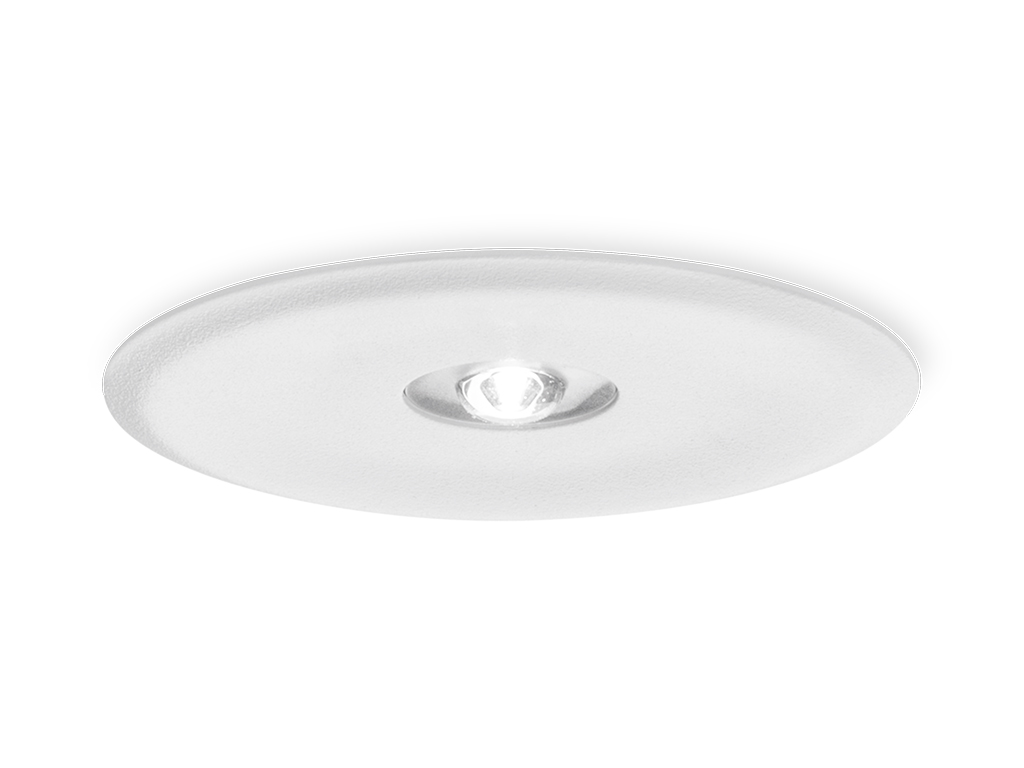

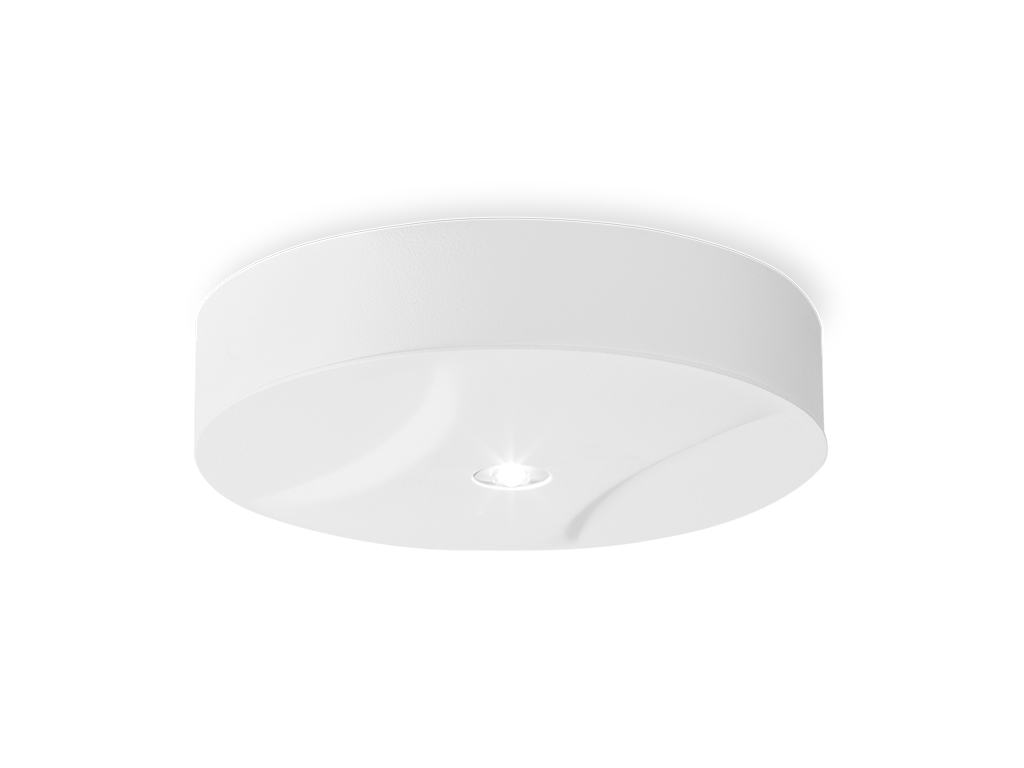

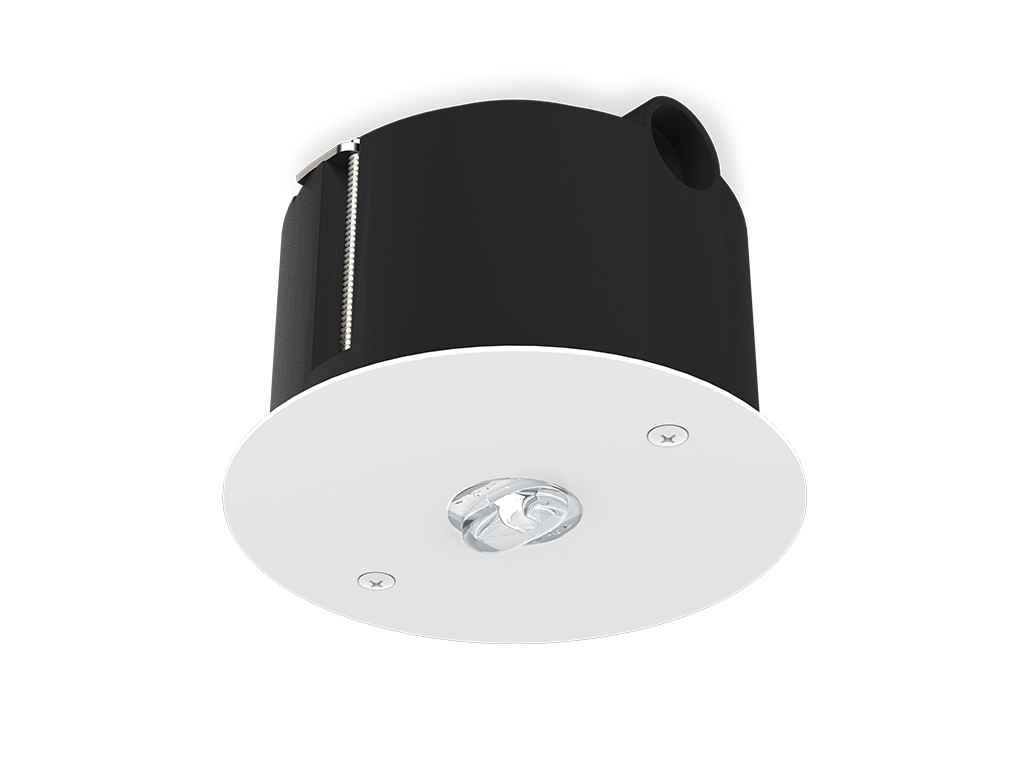

LED-Spot LG6 - LED-Spot LF6
All luminaire housings in this series have been designed to be compatible with the Light Engine and the desired lens. A combination of 8 luminaire housings of different mounting types, protection types and designs together with a variety of 7 high performance lenses result in 56 module variations.
Each luminaire design can be fitted with any lens to meet the exact features and requirements you require.
| Lens luminaires - Modular structure | |
|---|---|
| System luminaire: | • |
| Rechargeable battery luminaire: | – |
| Viewing distance: | |
| Enclosure material: | Sheet steel/Polycarbonate |
| Enclosure colour/surface: | RAL 9016 (weiß) |
| Light source : | LED |
| Degree of protection: | IP67 - IP41 - IP40 - IP20 |
| Class: | I/II |
| Mounting types: | Ceiling, recessed ceiling, wall bracket, pendant mounting |
| Order Number: |
Resources:
 | Data sheet (2.89 MB) |
| Data sheet (2.63 MB) |
| Data sheet (2.59 MB) |
| Data sheet (2.88 MB) |
| Data sheet (2.84 MB) |
| CE-declaration of conformity (0.37 MB) |
| CE-declaration of conformity (0.15 MB) |
| CE-declaration of conformity (0.37 MB) |
| CE-declaration of conformity (0.42 MB) |
| CE-declaration of conformit (0.37 MB) |
 | Gessler S- and A-Lenses Eulumdat Files (0.47 MB) |
| F1 Lens focussed light - Eulumdat Files (0.08 MB) |
