• Gessler_Quattro_Industrial

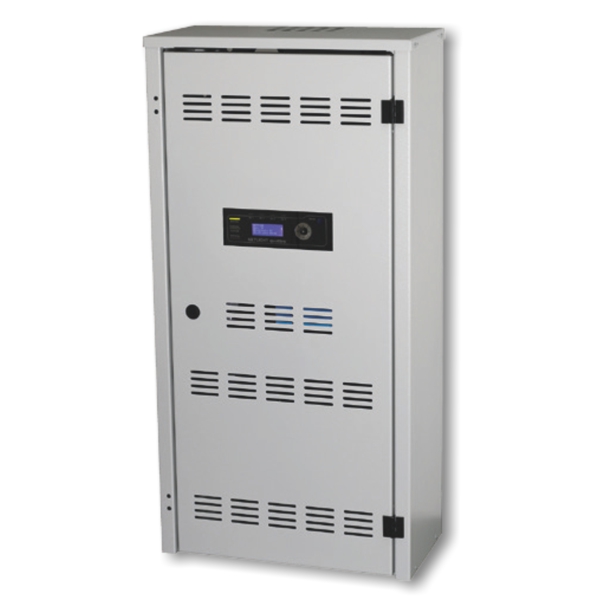

Merlin Quattro Industrial

  • load 1h: 250VA / 350VA; load 3h: 225VA / 350VA; load 8h: 88VA / 188VA, incl. 25% battery reserve
  • 4 final end circuits (1,6A)
  • free programmable for mixed installation of maintained and non-maintained luminaires
  • 230V output voltage (AC)
  • 24V battery voltage (DC)
  • line monitoring
  • Microprocessor-guided function and battery duration test
  • Logbook function included
  • Optional: Single-lamp monitoring by the use of address modules (without additional data line)
  • Optional: visualization on a PC
  • Optional: fitted in certified fireprotection cabinet (E30)

Resources:

gessler_merlin_quattro_industrial_2.pdfMerlin Quattro Industrial (0.36 MB)
merlin_quattro_ce_gessler.pdfCE-declaration of conformity (0.49 MB)
netlight_konfigurator_v10.0.2.2_setup.zipNetlight Konfigurator V10.0.2.2 setup (6.92 MB)
netlight_konfigurator_v10.0.2.0_setup.exeNetlight Konfigurator V10.0.2.0 setup (7.35 MB)
